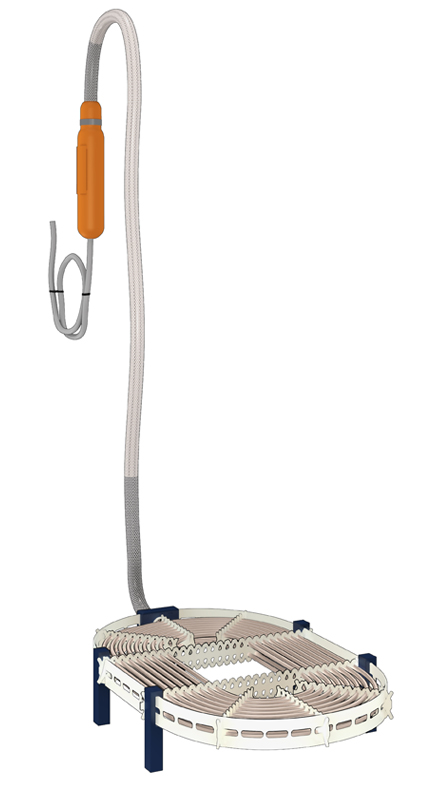

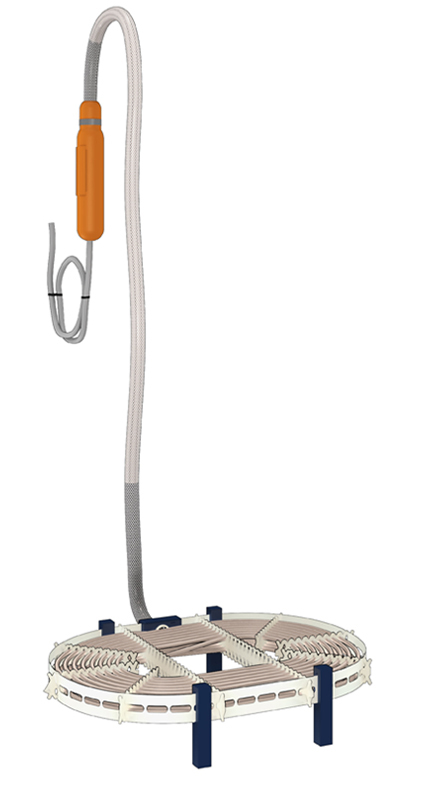

Flat immersion heater - Assembly type C with feet
- "All plastic" model
- Designed for small tank configurations and low powers.
- From 0,5 kW
- Minimum bulk
"All plastic" models particularly adapted to small tank configurations and low powers. Small overall dimensions as the structure follows the oval shape of the heating part.
Recommended up to 6 kW.
Assembly type C
On plastic structure PVDF, PP or FEP.
Feet : PP, PVDF or PTFE.
Standard configuration : heating cable coated Teflon® FEP and frame with PP or PVDF strips.
For use with feet at the bottom of the tank. Available for heaters with reference beginning with P30, P40 and P90.
Options and accessories
Removable guards for C
Perforated plastic guard in PP or PVDF - ref in PP : PRPPP - ref in PVDF : PRPPF
Feet for C
ref in PP : PIPP
ref in PVDF : PIPF
Extra length of cables
Electrical cable C of type HO5 VV-F or HO7 RN-F. Non heating cable N to go out of the tank.
Cable-gland, Ø75 mm
ref in PP : PEPP
ref in PVDF : PEPF
