Cylindrical immersion heater
Assembly type S
- Universal « all plastic » model
- Ideal for low powers
- From 0,5 kW
- Particularly adapted to a limited use
Specially designed for low powers and limited use. All plastic heaters with an outside diameter of 85 and 120 mm.

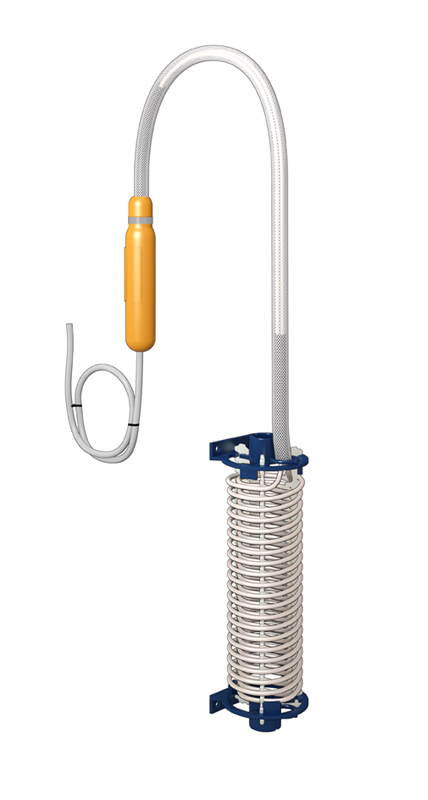

Galvatherm® Assembly type S
Flexible non heating support stem and without rod structure.
Standard configuration : heating cable coated Teflon® FEP and PP or PVDF elements.
For use on the side or at the bottom of the tank. Available for heaters with reference beginning with C85 and C12.
Options and accessories
Extra length of cables
Electrical cable C of type HO5 VV-F or HO7 RN-F. Non heating cable N to go out of the tank.
Cable-gland, Ø75 mm
ref in PP : PEPP
ref in PVDF : PEPF
Feet for type S
Feet in PP or PVDF for installation at the bottom of the tank (standard height 50 mm)- ref in PP : PICPP, ref in PVDF : PICPF
Removable guards
Perforated plastic trellis, in PP only for C85 and C12 heaters - ref in PP : PRCPP
